PyVista Geometry Visualization

GEMC uses PyVista to visualize detector geometry directly from Python. Geometry can be viewed interactively, exported as a .vtksz file for web-based display, or rendered as a screenshot. See the PyVista API documentation for the full API reference.

Quickstart

Copy the example to your current directory:

cp -r $GEMC_HOME/examples/basic/pyvista .
cd pyvista
./gemc_pyvista.py

To preview the geometry interactively (opens a PyVista window):

./gemc_pyvista.py -pv

Geometry

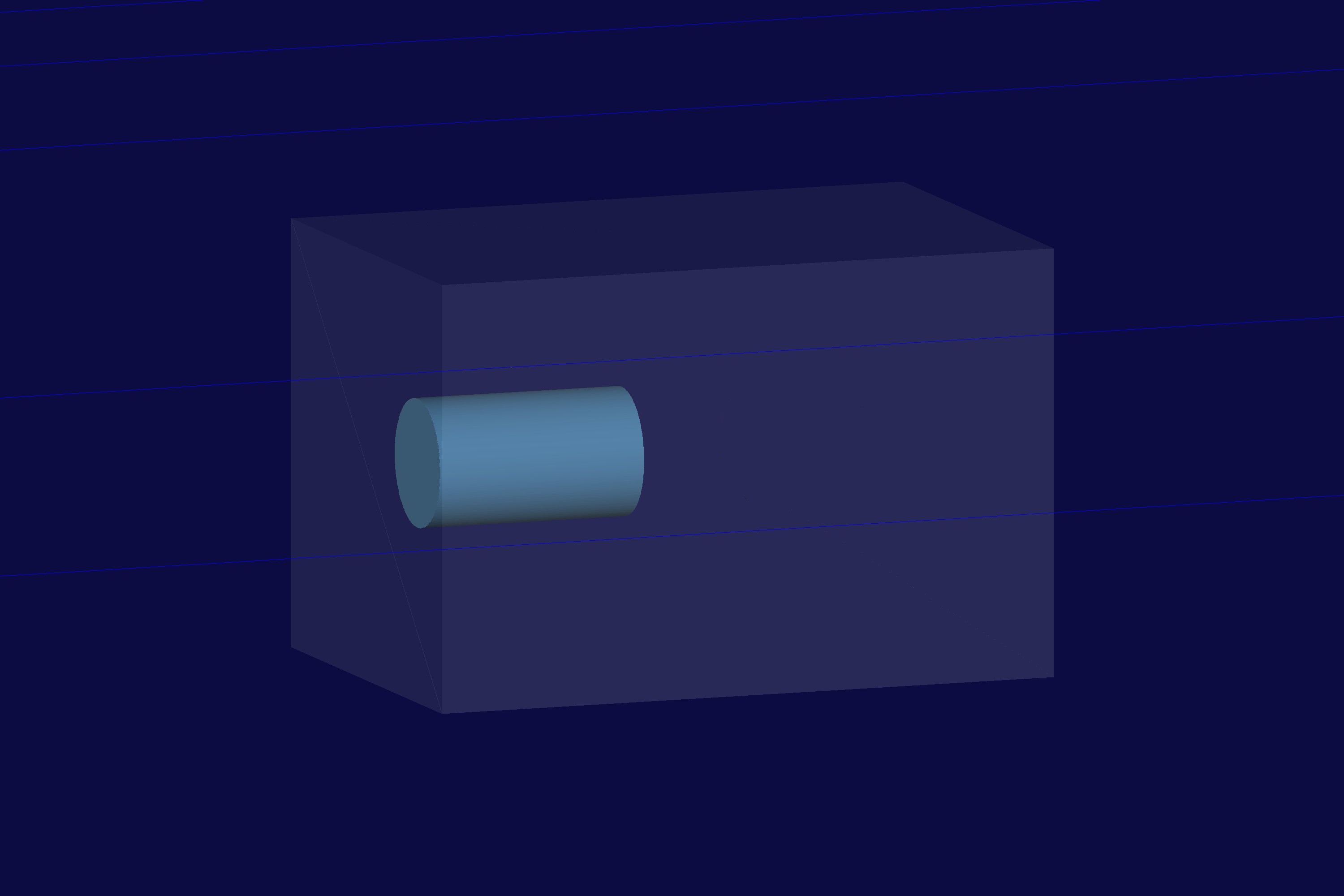

The example defines four volumes in pyvista_basic_shapes.py: a transparent container box, a solid cylinder, a sphere, and a small rotated box inside the container.

Interactive viewer:

Usage

Building the geometry

./gemc_pyvista.py

python API

Pass -h for additional command line options:

options:
  -h, --help            show this help message and exit
  -f, --factory FACTORY
						ascii, sqlite
  -v, --variation VARIATION
                        Set variation name
  -r, --run RUN         Set run number
  -sql, --dbhost DBHOST
                        SQLite filename or MYSQL host
  -pv, --pyvista        Show geometry using pyvista (needs pyvista)
  -pvb, --pvb, --pyvista-background
                        Use PyVista BackgroundPlotter (needs pyqt6 pyvistaqt)
  -pvw, --width WIDTH   Set plotter width
  -pvh, --height HEIGHT
						Set plotter height
  -pvx, --x X           Set plotter x position
  -pvy, --y Y           Set plotter y position
  -axes, --add_axes_at_zero

If you have pyvista (see also install pyvista), you can use the -pv and -pvb options to display the setup without having to run GEMC

Running gemc

gemc pyvista.yaml -n=10

Add -gui to run interactively.
