Container for digitized (electronics-level) observables for one hit. More...

#include <gDigitizedData.h>

Public Member Functions
	GDigitizedData (const std::shared_ptr< GOptions > &gopts, const GHit *ghit)
	Construct digitized data by copying identity from a hit.

std::string	getIdentityString () const
	Return a human-readable identity string for debugging and labeling.

std::map< std::string, int >	getIntObservablesMap (int which) const
	Return a filtered copy of the integer observables map.

std::map< std::string, double >	getDblObservablesMap (int which) const
	Return a filtered copy of the double observables map.

int	getTimeAtElectronics ()
	Convenience accessor for `TIMEATELECTRONICS`.

int	getIntObservable (const std::string &varName)
	Retrieve one integer observable by name.

double	getDblObservable (const std::string &varName)
	Retrieve one double observable by name.

std::map< std::string, std::vector< int > >	getArrayIntObservablesMap () const
	Get the array-valued integer observables map.

std::map< std::string, std::vector< double > >	getArrayDblObservablesMap () const
	Get the array-valued double observables map.

Per-hit insertion API
Store/overwrite observables for a single hit. These methods are typically called by digitization logic that computes observables for the current hit and wants to attach them to the output record. Overwrite semantics: Calling includeVariable() with an existing key replaces the stored value.
void	includeVariable (const std::string &vname, int value)
	Store/overwrite an integer observable for this hit (event-level).

void	includeVariable (const std::string &vname, double value)
	Store/overwrite a double observable for this hit (event-level).

Run-level integration API
Accumulate observables across hits/events (summation). These are used when a single GDigitizedData is serving as an accumulator. If the key does not exist, it is created. If it exists, the new contribution is added to the stored value. Note No normalization is performed.
void	accumulateVariable (const std::string &vname, int value)
	Accumulate an integer observable (run-level integration).

void	accumulateVariable (const std::string &vname, double value)
	Accumulate a double observable (run-level integration).

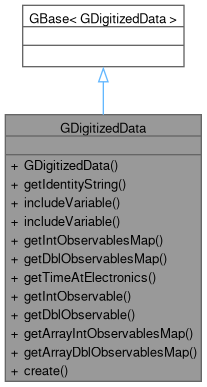

Public Member Functions inherited from GBase< GDigitizedData >
	GBase (const std::shared_ptr< GOptions > &gopt, std::string logger_name="")

	GBase (const std::shared_ptr< GLogger > &logger)

	GBase (const GBase &)=default

	GBase (GBase &&) noexcept=default

virtual	~GBase ()

GBase &	operator= (const GBase &)=default

GBase &	operator= (GBase &&) noexcept=default

Static Public Member Functions
static std::unique_ptr< GDigitizedData >	create (const std::shared_ptr< GOptions > &gopts)
	Test/example factory: create a digitized hit with deterministic dummy data.

Additional Inherited Members
Protected Attributes inherited from GBase< GDigitizedData >
std::shared_ptr< GLogger >	log

Detailed Description

A GDigitizedData instance corresponds to one hit after digitization. It is designed to be schema-flexible (map-based storage) while still allowing:

deterministic inspection via map iteration
selective export of readout keys (SRO filtering)
run-level integration via summation of scalars

Common usage patterns: 1) Event-level: create a new instance per hit; fill using includeVariable(). 2) Run-level: keep a single instance as an accumulator; integrate contributions with accumulateVariable().

Note: Accumulation is summation only; compute averages/rates in the consumer if needed.

Definition at line 85 of file gDigitizedData.h.

Constructor & Destructor Documentation

◆ GDigitizedData()

GDigitizedData::GDigitizedData	(	const std::shared_ptr< GOptions > &	gopts,
		const GHit *	ghit )

The constructor copies the hit identity (GIdentifier vector) from ghit. The identity can be rendered as a human-readable string via getIdentityString().

Ownership:

ghit is not owned and only needs to be valid during construction.

Parameters

gopts	Shared options object used to configure logging and behavior.
ghit	Pointer to the hit providing identity information (not owned).

Definition at line 29 of file gDigitizedData.cc.

Member Function Documentation

◆ accumulateVariable() [1/2]

void GDigitizedData::accumulateVariable	(	const std::string &	vname,
		double	value )

Definition at line 110 of file gDigitizedData.cc.

◆ accumulateVariable() [2/2]

void GDigitizedData::accumulateVariable	(	const std::string &	vname,
		int	value )

Definition at line 98 of file gDigitizedData.cc.

◆ create()

static std::unique_ptr< GDigitizedData > GDigitizedData::create ( const std::shared_ptr< GOptions > & gopts )

inlinestatic

This method exists to support examples and unit tests. It does not represent real detector digitization; instead it generates predictable values using a thread-safe counter.

The returned object includes:

SRO keys: crate/slot/channel/timeAtElectronics
one non-SRO observable: "adc"

Parameters

gopts Shared options.

Returns: A new digitized hit object.

Definition at line 258 of file gDigitizedData.h.

◆ getArrayDblObservablesMap()

std::map< std::string, std::vector< double > > GDigitizedData::getArrayDblObservablesMap ( ) const

inline

No filtering is applied to array-valued maps; their interpretation is producer-defined.

Returns: A copy of the array double observables map.

Definition at line 239 of file gDigitizedData.h.

◆ getArrayIntObservablesMap()

std::map< std::string, std::vector< int > > GDigitizedData::getArrayIntObservablesMap ( ) const

inline

Array observables are optional and may represent:

waveforms
time slices / samples
multi-hit or multi-sample payloads

Returns: A copy of the array integer observables map.

Definition at line 227 of file gDigitizedData.h.

◆ getDblObservable()

double GDigitizedData::getDblObservable ( const std::string & varName )

If the key is missing, an error is emitted via GLogger using ERR_VARIABLENOTFOUND.

Parameters

varName Observable name/key.

Returns: The stored double value.

Definition at line 138 of file gDigitizedData.cc.

◆ getDblObservablesMap()

std::map< std::string, double > GDigitizedData::getDblObservablesMap ( int which ) const

Uses the same filtering semantics as getIntObservablesMap().

Parameters

which Filter mode (0 = non-SRO, 1 = SRO only).

Returns: A filtered copy of the double observables.

Definition at line 53 of file gDigitizedData.cc.

◆ getIdentityString()

std::string GDigitizedData::getIdentityString ( ) const

Format:

name1->value1, name2->value2, ...

Returns: Identity string assembled from the hit identifiers.

Definition at line 147 of file gDigitizedData.cc.

◆ getIntObservable()

int GDigitizedData::getIntObservable ( const std::string & varName )

If the key is missing, an error is emitted via GLogger using ERR_VARIABLENOTFOUND. Return behavior after logging depends on the logger configuration (fatal vs non-fatal).

Parameters

varName Observable name/key.

Returns: The stored integer value.

Definition at line 129 of file gDigitizedData.cc.

◆ getIntObservablesMap()

std::map< std::string, int > GDigitizedData::getIntObservablesMap ( int which ) const

Filtering is based on whether a key is considered "streaming readout" (SRO):

which = 0: returns non-SRO variables (digitization outputs / physics-like quantities)
which = 1: returns only SRO variables (crate/slot/channel/timeAtElectronics/chargeAtElectronics)

Parameters

which Filter mode (0 = non-SRO, 1 = SRO only).

Returns: A filtered copy of the integer observables.

Definition at line 40 of file gDigitizedData.cc.

◆ getTimeAtElectronics()

int GDigitizedData::getTimeAtElectronics ( )

If the key is not present, returns TIMEATELECTRONICSNOTDEFINED (a sentinel). This avoids quietly inserting defaults and makes missing-data bugs easier to detect.

Returns: The time at electronics if present, otherwise TIMEATELECTRONICSNOTDEFINED.

Definition at line 122 of file gDigitizedData.cc.

◆ includeVariable() [1/2]

void GDigitizedData::includeVariable	(	const std::string &	vname,
		double	value )

Definition at line 92 of file gDigitizedData.cc.

◆ includeVariable() [2/2]

void GDigitizedData::includeVariable	(	const std::string &	vname,
		int	value )

Definition at line 86 of file gDigitizedData.cc.

The documentation for this class was generated from the following files:
