test_gfield_dipole.cc File Reference

Example program that loads a dipole field and evaluates it at random points. More...

#include "gfield_options.h"
#include "gmagneto.h"
#include <iostream>

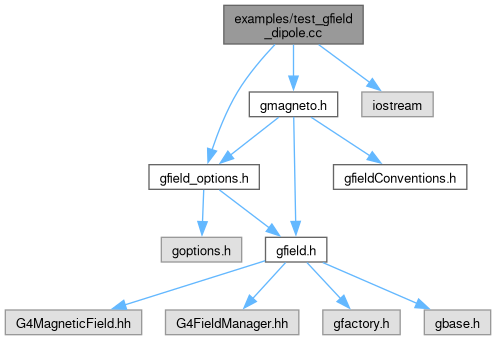

Include dependency graph for test_gfield_dipole.cc:

Go to the source code of this file.

Functions
int	main (int argc, char *argv[])
	Entry point of the example program.

Detailed Description

Summary

Demonstrates the minimal workflow to:

• define and parse module options,
• construct GMagneto(),
• access a field by name via getField(),
• and call GetFieldValue() to evaluate the magnetic field vector.

This example is referenced from the module mainpage: example_test_gfield_dipole .

Definition in file test_gfield_dipole.cc.

Function Documentation

main()

int main	(	int	argc,
		char *	argv[] )

Parameters

argc	Number of command-line arguments.
argv	Command-line argument array.

Returns

Exit status (EXIT_SUCCESS on normal completion).

Expected configuration:

• The program expects that options define a field named "dipole" (for example via gmultipoles).

Runtime behavior:

• Constructs GOptions using gfields::defineOptions().
• Constructs GMagneto which loads and registers configured fields.
• If the field exists, evaluates it at 100 random points and discards the results (demonstration only).

Definition at line 51 of file test_gfield_dipole.cc.
