Conventions and shared constants for the detector-system module. More...

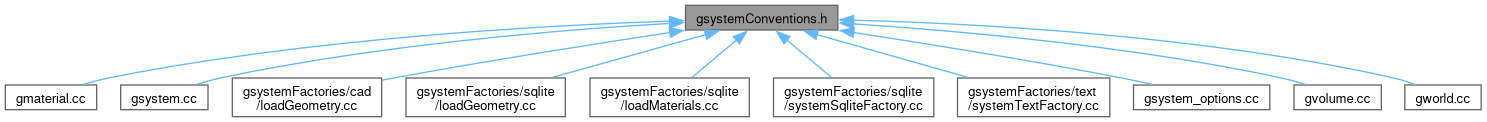

This graph shows which files directly or indirectly include this file:

Macros
Database row sizes
Expected number of positional fields for serialized DB/ASCII rows. The module reads geometry and material data as serialized, positional vectors. These constants define the expected number of fields for each record type.
#define	GVOLUMENUMBEROFPARS 21

#define	GMATERIALNUMBEROFPARS 18
	Number of database parameters defining a gmaterial entry.

Default placement strings
Default position and rotation strings, primarily for the ROOT/world volume. These are used when creating the implicit ROOT/world volume or when a configuration requests a default placement. Units are embedded in the strings and interpreted by the same utilities used by geometry parsing.
#define	DEFAULTPOSITION "0cm, 0cm, 0*cm"

#define	DEFAULTROTATION "0deg, 0deg, 0*deg"

Error codes
Module-level exit/status codes. Values are in the 200s range and are used by the logger error path to provide stable identifiers for common failure modes.
#define	ERR_GVOLUMEALREADYPRESENT 201

#define	ERR_GWRONGNUMBEROFPARS 202

#define	ERR_GSETUPFILENOTOFOUND 203

#define	ERR_GVOLUMENOTFOUND 204

#define	ERR_GDIRNOTFOUND 205

#define	ERR_GMATERIALOPTICALPROPERTYMISMATCH 206

#define	ERR_GMATERIALNOTFOUND 207

#define	ERR_GVOLUMENAMECONTAINSINVALID 208

#define	ERR_GSQLITEERROR 209

#define	ERR_GMATERIALALREADYPRESENT 210

#define	ERR_EXPERIMENTNOTFOUND 211

Modifier conventions
Sentinel values used when no modifier is requested.
#define	GSYSTEMNOMODIFIER "noModifier"

Environment and naming conventions
Shared names used across factories and core types.
#define	GEMCDB_ENV "GEMCDB_ENV"

#define	ROOTWORLDGVOLUMENAME "root"
	Canonical name for the ROOT/world gvolume entry.

#define	ROOTDEFINITION "G4Box 15m 15m 15*m G4_AIR"

#define	MOTHEROFUSALL "akasha"
	Special mother-name marker for the top-level world root.

#define	GSYSTEM_DELIMITER "/"
	Delimiter used to build fully-qualified names (system/name).

Factory labels
Identifiers used in configuration to select concrete factories.
#define	GSYSTEMASCIIFACTORYLABEL "ascii"

#define	GSYSTEMCADTFACTORYLABEL "CAD"

#define	GSYSTEMGDMLTFACTORYLABEL "GDML"

#define	GSYSTEMMYSQLTFACTORYLABEL "mysql"

#define	GSYSTEMSQLITETFACTORYLABEL "sqlite"

#define	GSYSTEMSQLITETDEFAULTFILE "gemc.db"
	Default sqlite DB filename used when the user does not specify one.

#define	GSYSTEMSASCIISEARCHDIR "."
	Default search directory for ASCII factory files.

Detailed Description

This header centralizes:

geometry/material row sizes used by database-backed factories;
default placement/rotation strings for ROOT/world volumes;
common error codes used by geometry/material loaders;
factory labels and naming conventions.

Assumptions:

Volumes and materials in each system must have a unique name.

Definition in file gsystemConventions.h.

Macro Definition Documentation

◆ DEFAULTPOSITION

#define DEFAULTPOSITION "0*cm, 0*cm, 0*cm"

Definition at line 48 of file gsystemConventions.h.

◆ DEFAULTROTATION

#define DEFAULTROTATION "0*deg, 0*deg, 0*deg"

Definition at line 49 of file gsystemConventions.h.

◆ ERR_EXPERIMENTNOTFOUND

#define ERR_EXPERIMENTNOTFOUND 211

Definition at line 74 of file gsystemConventions.h.

◆ ERR_GDIRNOTFOUND

#define ERR_GDIRNOTFOUND 205

Definition at line 68 of file gsystemConventions.h.

◆ ERR_GMATERIALALREADYPRESENT

#define ERR_GMATERIALALREADYPRESENT 210

Definition at line 73 of file gsystemConventions.h.

◆ ERR_GMATERIALNOTFOUND

#define ERR_GMATERIALNOTFOUND 207

Definition at line 70 of file gsystemConventions.h.

◆ ERR_GMATERIALOPTICALPROPERTYMISMATCH

#define ERR_GMATERIALOPTICALPROPERTYMISMATCH 206

Definition at line 69 of file gsystemConventions.h.

◆ ERR_GSETUPFILENOTOFOUND

#define ERR_GSETUPFILENOTOFOUND 203

Definition at line 66 of file gsystemConventions.h.

◆ ERR_GSQLITEERROR

#define ERR_GSQLITEERROR 209

Definition at line 72 of file gsystemConventions.h.

◆ ERR_GVOLUMEALREADYPRESENT

#define ERR_GVOLUMEALREADYPRESENT 201

Definition at line 64 of file gsystemConventions.h.

◆ ERR_GVOLUMENAMECONTAINSINVALID

#define ERR_GVOLUMENAMECONTAINSINVALID 208

Definition at line 71 of file gsystemConventions.h.

◆ ERR_GVOLUMENOTFOUND

#define ERR_GVOLUMENOTFOUND 204

Definition at line 67 of file gsystemConventions.h.

◆ ERR_GWRONGNUMBEROFPARS

#define ERR_GWRONGNUMBEROFPARS 202

Definition at line 65 of file gsystemConventions.h.

◆ GEMCDB_ENV

#define GEMCDB_ENV "GEMCDB_ENV"

Environment variable name used by GEMC database tooling.

Definition at line 100 of file gsystemConventions.h.

◆ GMATERIALNUMBEROFPARS

#define GMATERIALNUMBEROFPARS 18

Definition at line 32 of file gsystemConventions.h.

◆ GSYSTEM_DELIMITER

#define GSYSTEM_DELIMITER "/"

Definition at line 113 of file gsystemConventions.h.

◆ GSYSTEMASCIIFACTORYLABEL

#define GSYSTEMASCIIFACTORYLABEL "ascii"

Definition at line 125 of file gsystemConventions.h.

◆ GSYSTEMCADTFACTORYLABEL

#define GSYSTEMCADTFACTORYLABEL "CAD"

Definition at line 126 of file gsystemConventions.h.

◆ GSYSTEMGDMLTFACTORYLABEL

#define GSYSTEMGDMLTFACTORYLABEL "GDML"

Definition at line 127 of file gsystemConventions.h.

◆ GSYSTEMMYSQLTFACTORYLABEL

#define GSYSTEMMYSQLTFACTORYLABEL "mysql"

Definition at line 128 of file gsystemConventions.h.

◆ GSYSTEMNOMODIFIER

#define GSYSTEMNOMODIFIER "noModifier"

Special string used to represent “no modifier is requested”.

Definition at line 87 of file gsystemConventions.h.

◆ GSYSTEMSASCIISEARCHDIR

#define GSYSTEMSASCIISEARCHDIR "."

Definition at line 135 of file gsystemConventions.h.

◆ GSYSTEMSQLITETDEFAULTFILE

#define GSYSTEMSQLITETDEFAULTFILE "gemc.db"

Definition at line 132 of file gsystemConventions.h.

◆ GSYSTEMSQLITETFACTORYLABEL

#define GSYSTEMSQLITETFACTORYLABEL "sqlite"

Definition at line 129 of file gsystemConventions.h.

◆ GVOLUMENUMBEROFPARS

#define GVOLUMENUMBEROFPARS 21

Number of database parameters defining a gvolume entry.

Definition at line 30 of file gsystemConventions.h.

◆ MOTHEROFUSALL

#define MOTHEROFUSALL "akasha"

Definition at line 110 of file gsystemConventions.h.

◆ ROOTDEFINITION

#define ROOTDEFINITION "G4Box 15*m 15*m 15*m G4_AIR"

Default ROOT/world volume definition string (type + dimensions + material).

Note: The type corresponds to a Geant4 solid type string (e.g. G4Box).

Definition at line 107 of file gsystemConventions.h.

◆ ROOTWORLDGVOLUMENAME

#define ROOTWORLDGVOLUMENAME "root"

Definition at line 103 of file gsystemConventions.h.
