Represents a touchable sensitive detector element used as a hit-collection discriminator. More...

#include <gtouchable.h>

Public Member Functions
	GTouchable (const GTouchable &)=default

GTouchable &	operator= (const GTouchable &)=default

	GTouchable (const std::shared_ptr< GOptions > &gopt, const std::string &digitization, const std::string &gidentityString, const std::vector< double > &dimensions, const double &mass)
	Constructs a `GTouchable` using module options.

	GTouchable (const std::shared_ptr< GLogger > &logger, const std::string &digitization, const std::string &gidentityString, const std::vector< double > &dimensions, const double &mass)
	Constructs a `GTouchable` using an existing logger.

	GTouchable (const std::shared_ptr< GTouchable > &base, int newTimeIndex)
	Copy constructor that preserves identity but updates the electronics time-cell index.

	~GTouchable ()
	Destructor with debug trace.

bool	operator== (const GTouchable &gtouchable) const
	Compares two `GTouchable` instances using the module comparison semantics.

void	assignTrackId (int tid)
	Assigns the track id used by `flux` and `dosimeter` discrimination.

void	assignPId (int p)
	Assigns the particle id used by `particle` counter discrimination.

double	getEnergyMultiplier () const
	Returns the energy multiplier used for energy sharing.

void	assignStepTimeAtElectronicsIndex (int timeIndex)
	Assigns the electronics time-cell index used by `readout` discrimination.

int	getStepTimeAtElectronicsIndex () const
	Returns the electronics time-cell index.

std::vector< GIdentifier >	getIdentity () const
	Returns a copy of the identity vector.

std::string	getIdentityString () const
	Builds a human-readable identity string from the stored identifiers.

std::vector< double >	getDetectorDimensions () const
	Returns the detector dimensions stored at construction time.

double	getMass () const
	Returns the mass of the sensitive g4volume.

bool	exists_in_vector (const std::vector< GTouchable > &v) const
	Checks whether this touchable exists in a vector using `operator==` semantics.

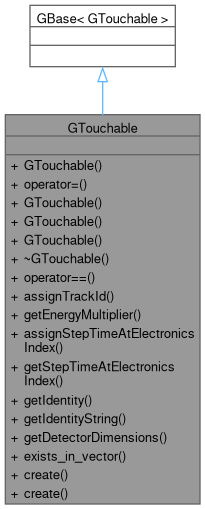

Public Member Functions inherited from GBase< GTouchable >
	GBase (const std::shared_ptr< GOptions > &gopt, std::string logger_name="")

	GBase (const std::shared_ptr< GLogger > &logger)

	GBase (const GBase &)=default

	GBase (GBase &&) noexcept=default

virtual	~GBase ()

GBase &	operator= (const GBase &)=default

GBase &	operator= (GBase &&) noexcept=default

Static Public Member Functions
static std::shared_ptr< GTouchable >	create (const std::shared_ptr< GOptions > &gopt)
	Creates a synthetic `readout` touchable for testing (options-based).

static std::shared_ptr< GTouchable >	create (const std::shared_ptr< GLogger > &logger)
	Creates a synthetic `readout` touchable for testing (logger-based).

Friends
std::ostream &	operator<< (std::ostream &stream, const GTouchable &gtouchable)
	Stream output helper used in logs and diagnostics.

Additional Inherited Members
Protected Attributes inherited from GBase< GTouchable >
std::shared_ptr< GLogger >	log

Detailed Description

A GTouchable acts as a compact “address” for sensitive detector elements during hit processing and digitization. It is commonly used as a key when deciding whether a newly produced hit should:

merge into an existing hit collection entry, or
create a new entry.

Comparison semantics

The equality operator implements a two-stage comparison:

Compare the identity vector values positionally (same size and same identifier values).
If identities match, apply a type-specific discriminator:
- readout compares stepTimeAtElectronicsIndex
- flux compares trackId
- dosimeter always matches once identities match
- particle_counter compares pid
- integral_counter always matches once identities match

The identity vector size mismatch is considered an exceptional situation and is logged at debug level.

Definition at line 140 of file gtouchable.h.

Constructor & Destructor Documentation

◆ GTouchable() [1/4]

GTouchable::GTouchable ( const GTouchable & )

default

◆ GTouchable() [2/4]

GTouchable::GTouchable	(	const std::shared_ptr< GOptions > &	gopt,
		const std::string &	digitization,
		const std::string &	gidentityString,
		const std::vector< double > &	dimensions,
		const double &	mass )

This constructor is used when a module options object is available and a module-scoped logger should be created/used by the base class.

Called from detector construction code when building the sensitive detector registry.

Parameters

gopt	Options container used to configure logging and module behavior.
digitization	Digitization type string (e.g. `"readout"`, `FLUXNAME`, `COUNTERNAME`).
gidentityString	Identity specification string, e.g. `"sector: 2, layer: 4, wire: 33"`.
dimensions	Physical dimensions of the detector element (module-defined convention).
mass	The mass of the detector element.

Definition at line 16 of file gtouchable.cc.

◆ GTouchable() [3/4]

GTouchable::GTouchable	(	const std::shared_ptr< GLogger > &	logger,
		const std::string &	digitization,
		const std::string &	gidentityString,
		const std::vector< double > &	dimensions,
		const double &	mass )

This constructor is useful when a caller already owns a configured logger instance (for example, in tests or in code that wants to share a logger across multiple objects).

Parameters

logger	Logger instance used for diagnostics.
digitization	Digitization type string (e.g. `"readout"`, `FLUXNAME`, `COUNTERNAME`).
gidentityString	Identity specification string, e.g. `"sector: 2, layer: 4, wire: 33"`.
dimensions	Physical dimensions of the detector element (module-defined convention).
mass	The mass of the detector element.

Definition at line 54 of file gtouchable.cc.

◆ GTouchable() [4/4]

GTouchable::GTouchable	(	const std::shared_ptr< GTouchable > &	base,
		int	newTimeIndex )

inline

This is used to create a new hit key when the identity matches but the time-cell differs, i.e. when a hit must be split by electronics time window.

The copy uses the base class copy constructor and then copies the data members from base, replacing only stepTimeAtElectronicsIndex with newTimeIndex.

Parameters

base	Existing touchable to copy from.
newTimeIndex	The updated electronics time-cell index.

Definition at line 197 of file gtouchable.h.

◆ ~GTouchable()

GTouchable::~GTouchable ( )

inline

The destructor logs the type and getIdentityString() at debug level, which can be useful when diagnosing object lifetimes.

Definition at line 213 of file gtouchable.h.

Member Function Documentation

◆ assignPId()

void GTouchable::assignPId ( int p )

inline

This value is typically set during hit processing when the simulation step is known.

Parameters

p	Particle id to store in the touchable.

Definition at line 239 of file gtouchable.h.

◆ assignStepTimeAtElectronicsIndex()

void GTouchable::assignStepTimeAtElectronicsIndex ( int timeIndex )

inline

Parameters

timeIndex Electronics time-cell index that represents the readout time window.

Definition at line 256 of file gtouchable.h.

◆ assignTrackId()

void GTouchable::assignTrackId ( int tid )

inline

This value is typically set during hit processing when the simulation step is known.

Parameters

tid	Track id to store in the touchable.

Definition at line 230 of file gtouchable.h.

◆ create() [1/2]

static std::shared_ptr< GTouchable > GTouchable::create ( const std::shared_ptr< GLogger > & logger )

inlinestatic

The generated identity uses a deterministic pattern based on a process-wide atomic counter:

sector cycles in [1..6]
paddle cycles in [1..20]

Parameters

logger Logger instance used for diagnostics.

Returns: A newly created test touchable.

Definition at line 354 of file gtouchable.h.

◆ create() [2/2]

static std::shared_ptr< GTouchable > GTouchable::create ( const std::shared_ptr< GOptions > & gopt )

inlinestatic

The generated identity uses a deterministic pattern based on a process-wide atomic counter:

sector cycles in [1..6]
paddle cycles in [1..20]

Parameters

gopt	Options container used to configure logging and module behavior.

Returns: A newly created test touchable.

Definition at line 333 of file gtouchable.h.

◆ exists_in_vector()

bool GTouchable::exists_in_vector ( const std::vector< GTouchable > & v ) const

inline

This is a convenience helper mainly used for diagnostics and validation logic. It logs level-2 informational messages indicating whether the touchable was found.

Parameters

v	Vector of touchables to scan.

Returns: True if a matching touchable is found, false otherwise.

Definition at line 311 of file gtouchable.h.

◆ getDetectorDimensions()

std::vector< double > GTouchable::getDetectorDimensions ( ) const

inline

Dimensions are stored verbatim and interpreted by module-specific digitization logic.

Returns: A vector containing the dimensions.

Definition at line 293 of file gtouchable.h.

◆ getEnergyMultiplier()

double GTouchable::getEnergyMultiplier ( ) const

inline

The multiplier is typically set by digitization logic (for example when distributing energy across multiple readout cells). The default is 1.

Returns: The energy multiplier.

Definition at line 249 of file gtouchable.h.

◆ getIdentity()

std::vector< GIdentifier > GTouchable::getIdentity ( ) const

inline

Returns: The identity vector as a std::vector of GIdentifier.

Definition at line 270 of file gtouchable.h.

◆ getIdentityString()

std::string GTouchable::getIdentityString ( ) const

inline

The returned string is constructed by concatenating each identifier as: "<name>: <value> " (note the trailing space).

Returns: A human-readable identity string.

Definition at line 280 of file gtouchable.h.

◆ getMass()

double GTouchable::getMass ( ) const

inline

Returns: a double with the mass value

Definition at line 300 of file gtouchable.h.

◆ getStepTimeAtElectronicsIndex()

int GTouchable::getStepTimeAtElectronicsIndex ( ) const

inline

Returns: The stored time-cell index, or GTOUCHABLEUNSETTIMEINDEX if not assigned yet.

Definition at line 263 of file gtouchable.h.

◆ operator=()

GTouchable & GTouchable::operator= ( const GTouchable & )

default

◆ operator==()

bool GTouchable::operator== ( const GTouchable & gtouchable ) const

Parameters

gtouchable The touchable to compare with.

Returns: True if the objects are considered equal (same identity and same type-specific discriminator).

Definition at line 91 of file gtouchable.cc.

Friends And Related Symbol Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	stream,
		const GTouchable &	gtouchable )

friend

Definition at line 150 of file gtouchable.cc.

The documentation for this class was generated from the following files:
