Example b1

This example duplicates the geant4 basic example B1. It uses the dosimeter digitization to store the accumulated dose on a detector.

Quickstart

To create the geometry and run GEMC to produce a ROOT file:

./b1.py
gemc b1.yaml -gstreamer="[{format: root, filename: out}]"

Geometry

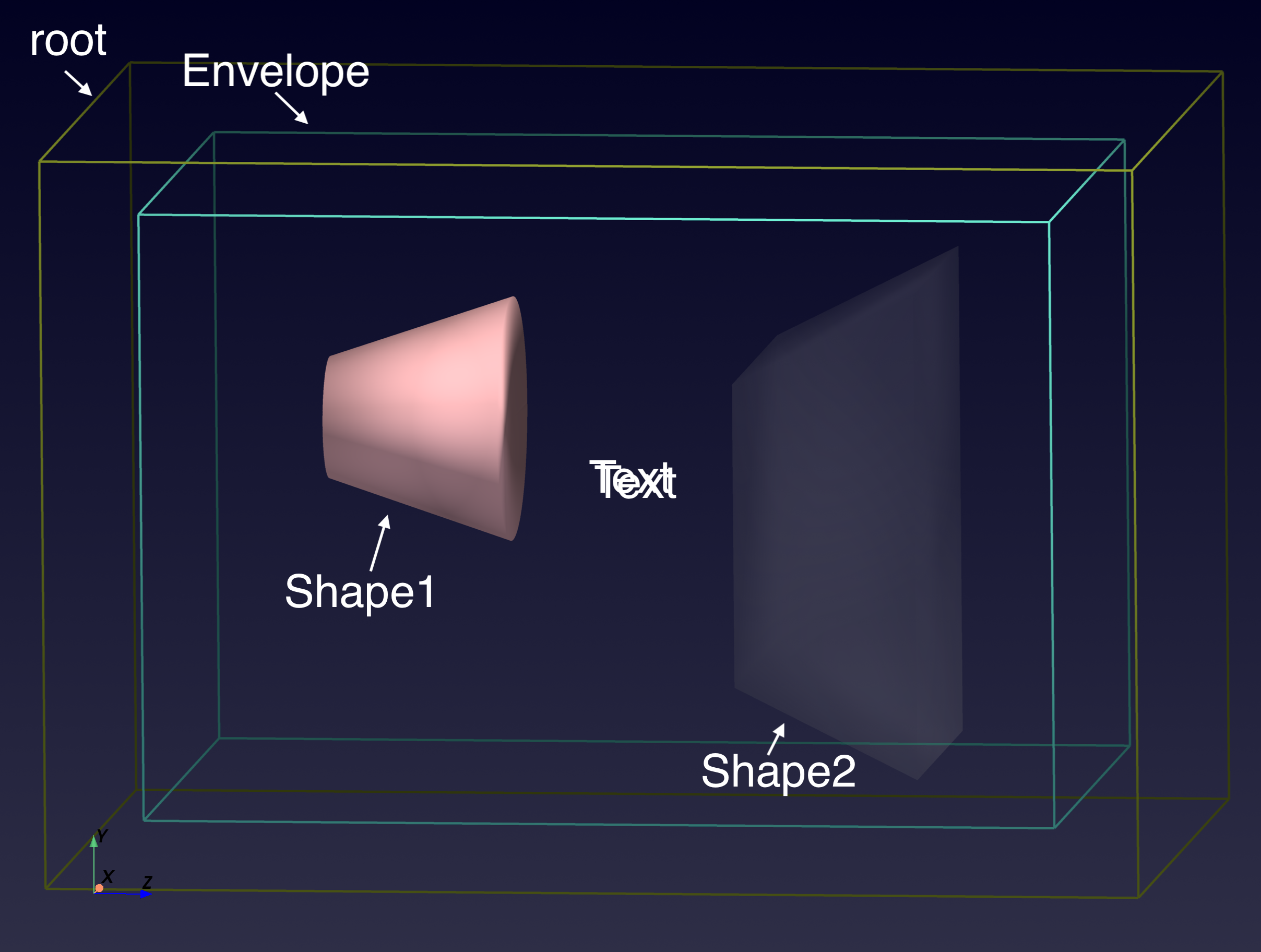

The geometry, shown below, is defined in b1.py. The world, named root, is a box; it contains Envelope, another box made of water.

Envelope includes two volumes: a polycone and a trapezoid, named Shape1 and Shape2. These are made from tissue and bone materials, common for medical applications and thus pre-defined in the Geant4 Material Database:

G4_A-150_TISSUE
G4_BONE_COMPACT_ICRU

Physics List

QBBC is used by default, picked in the yaml file using phys_list: QBBC

phys_list

The physics list can be selected using the option
gemc -phys_list <value>
where <value> can be a combination of the Geant4 physics constructors separated by the + sign. For example
gemc -phys_list="FTFP_BERT + G4NeutronCrossSectionXS"
To see a list of the available Geant4 constructors:
gemc -showPhysics

Generator

The default kinematics is a 6 MeV gamma generated along the z-axis, randomly distributed in front of the envelope. This is defined in the yaml file:

gparticle:
  - name: gamma
    p: 6
    vz: -15
    delta_vx: 4
    delta_vy: 4
    multiplicity: 1

gparticle

The gparticle option allows to control the Geant4 particle gun. For the complete list of parameter that can be passed to it: gemc help gparticle.

Some of them:

name: Particle name (mandatory), for example “proton”.

multiplicity: How many copies of this particle will be generated in each event. notice that the copies are not identical if some additional parameters are specified, for example delta_p, delta_theta.

p: Particle momentum.

delta_p: Particle momentum range, centered on p.

theta: Particle polar angle.

delta_theta: Particle polar angle range, centered on theta. D

phi: Particle azimuthal angle.

For example, to define a particle gun with one electron along z plus 1 proton at theta=30,phi=90 degrees, use
Command line:
-garticle="[{name: e-, p: 5000}, {name: proton, p: 2000, theta: 30, phi: 90}]"
Yaml:
 particle:
  - name: e-
    p: 5000
    multiplicity: 5
  - name: proton
    p: 2000
    theta: 30
    phi: 90

Digitization

The Shape2 volume is associated to the dosimeter digitization (one of the available GEMC pre-built routines) in geometry.py:

        gvolume.digitization = 'dosimeter'
		gvolume.set_identifier('mydosimeter', 1)

The dosimeter digitization will create and accumulate the variables etot and dose throughout events in a run.

\[\mathrm{dose} = \frac{\mathrm{etot}}{\mathrm{mass}}\]

where etot is the total energy deposited in each event and mass is the mass of Shape2.

Here we use a custom string mydosimeter and number 1 to identify a sensitive element.

The variables mydosimeter, etot and dose are saved in the output.

Usage

Building the detector

Use the python script b1.py to build the detector. By default, the setup is stored in a SQLite file name gemc.db. Various command line options can define the database type, variations and run number.

python API

Pass -h for additional command line options:

options:
  -h, --help            show this help message and exit
  -f, --factory FACTORY
						ascii, sqlite
  -v, --variation VARIATION
                        Set variation name
  -r, --run RUN         Set run number
  -sql, --dbhost DBHOST
                        SQLite filename or MYSQL host
  -pv, --pyvista        Show geometry using pyvista (needs pyvista)
  -pvb, --pvb, --pyvista-background
                        Use PyVista BackgroundPlotter (needs pyqt6 pyvistaqt)
  -pvw, --width WIDTH   Set plotter width
  -pvh, --height HEIGHT
						Set plotter height
  -pvx, --x X           Set plotter x position
  -pvy, --y Y           Set plotter y position
  -axes, --add_axes_at_zero

If you have pyvista (see also install pyvista), you can use the -pv and -pvb options to display the setup without having to run GEMC

Running gemc

The file b1.yaml can be used to run the setup. Use the gstreamer option to select the name and format of the output. For ROOT output:

 -gstreamer="[{format: root, filename: out}]"

gstreamer

The gstreamer option allows select the name and format of the output. Run gemc help gstreamer to check its documentation:

-gstreamer=<sequence> ......: define a gstreamer output

• filename: name of output file. Default value: NODFLT
• format: format of output file. Default value: NODFLT
• type: type of output fileDefault value: event


Define output formats and filenames.
It can be used to select <events> or <frame> streams.
The file extension is added automatically based on the format.

Supported formats:

  - jlabsro
  - root
  - ascii
  - csv
  - json


Output types:

  - event: write events
  - stream: write frame time snapshots

Example that defines two gstreamer outputs:

 -gstreamer="[{format: root, filename: out}, {format: csv, filename: out}]"


The produced files structure depends on the accumulation method used:

  - event-based digitization (like <flux>) will have one file for every j
    thread, with "_tj" appended to the filename
  - run-based digitization (like <dosimeter>) will have one file only

Add -gui to run GEMC interactively.

gemc b1.yaml -gui  -gstreamer="[{format: root, filename: out}]"

Modify b1.yaml or the command line as needed, in particular to add particles, control the number of threads, add output etc.
