gRunDataCollection.h File Reference

Defines GRunDataCollection, run-level aggregation of detector data. More...

#include "gRunHeader.h"
#include "gEventDataCollection.h"
#include <map>
#include <string>

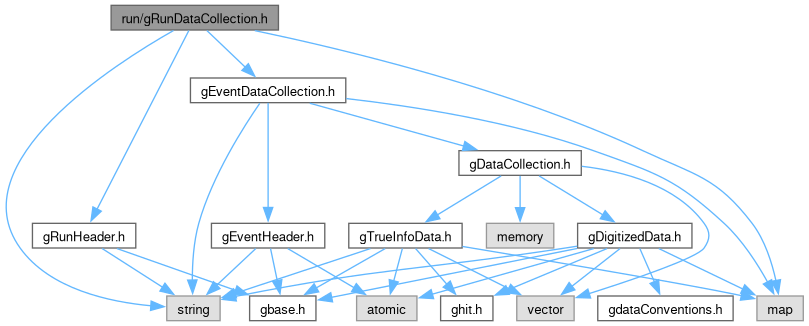

Include dependency graph for gRunDataCollection.h:

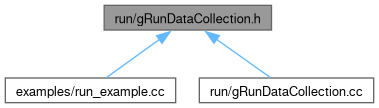

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
class	GRunDataCollection
	Run-level container that integrates per-event detector data into per-detector summaries. More...

Namespaces
namespace	grun_data

Functions
auto	grun_data::defineOptions () -> GOptions
	Aggregated options for run-level data collection.

Variables
constexpr const char *	GRUNDATA_LOGGER = "grun_data"

Detailed Description

A run collection integrates event-level data into a run summary.

It owns:

• a GRunHeader describing run ID and integrated event count
• a map from sensitive detector name to GDataCollection (the per-detector accumulator)

Integration is performed by consuming GEventDataCollection objects and:

• iterating over each detector’s per-hit data vectors
• accumulating observables into a per-detector GDataCollection entry

The resulting structure typically has:

• one GDataCollection per detector
• one integrated GTrueInfoData and one integrated GDigitizedData entry per detector (vector size 1), depending on how GDataCollection integration is used.

Note

Event counter This class currently does not increment GRunHeader::events_processed. If you want that counter to reflect integrated events, the caller (or this class) must call increment_events_processed() once per integrated event.

Definition in file gRunDataCollection.h.

Variable Documentation

GRUNDATA_LOGGER

constexpr const char* GRUNDATA_LOGGER = "grun_data"

constexpr

Definition at line 36 of file gRunDataCollection.h.
