gsd.h File Reference
Declares the GSensitiveDetector class and module-level constants.
#include "G4VSensitiveDetector.hh"#include <gemc/goptions/goptions.h>#include <gemc/gdynamicDigitization/gdynamicdigitization.h>#include <gemc/gbase/gbase.h>#include <unordered_map>

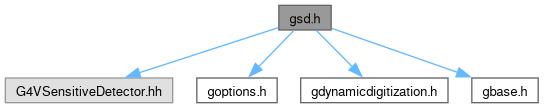

Include dependency graph for gsd.h:
This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| class | GSensitiveDetector |
| Thread-local sensitive detector bridging Geant4 steps to GEMC hits via digitization plugins. More... | |
Namespaces | |
| namespace | gsensitivedetector |
Typedefs | |
| using | GHitsCollection = G4THitsCollection<GHit> |
| Convenience alias for the Geant4 hits collection used by this module. | |
Functions | |
| GOptions | gsensitivedetector::defineOptions () |
| Defines the module options for GSensitiveDetector. | |
Variables | |
GSensitiveDetector error codes | |
These error codes are used for logging and diagnostics within GSensitiveDetector. | |
| constexpr int | ERR_DYNAMICPLUGINNOTFOUND = 2001 |
| Error code used when a required dynamic plugin-dependent resource is missing. | |
| constexpr int | ERR_HITNOTFOUNDINCOLLECTION = 2002 |
| Error code used when a hit is expected to exist but cannot be found in the current hit collection. | |
| constexpr int | ERR_NOCOLLECTION = 2003 |
| Error code used when the Geant4 hits collection is unexpectedly missing. | |
| constexpr const char * | GSENSITIVE_LOGGER = "gsd" |
| Logger name used by this module. | |
Variable Documentation
◆ ERR_DYNAMICPLUGINNOTFOUND
|
constexpr |
This module logs this code when it cannot retrieve a registered GTouchable for a Geant4 volume name.
