CAD Example

This example imports three STL organ meshes with the GEMC CAD factory and models a medical brachytherapy treatment: an Iridium-192 high-dose-rate (HDR) source is placed inside the liver and emits photons isotropically. Each organ is a flux sensitive detector, so the deposited energy is recorded per organ; plot_dose.py converts it to absorbed dose and to the equivalent Ir-192 irradiation time.

Upcoming in the next release.

Quickstart

Copy the example to your current directory. To upload the CAD definitions, run 200 events producing CSV output, and plot the dose in each organ:

cp -r $GEMC_HOME/examples/basic/cad .
cd cad
./cad.py
gemc cad.yaml -n=200
./plot_dose.py

Geometry

The geometry is defined declaratively in stls/cad__default.yaml and uploaded into gemc.db by cad.py.

The CAD system named stls contains:

heart_NIH3D, a blood-material heart mesh.
respiratory_NIH3D, a translucent lung mesh made with G4_LUNG_ICRP.
liver_NIH3D, a soft-tissue liver mesh.

Each entry in stls/cad__default.yaml sets the mesh file, material, color, scale, position, and identifier. The system value must match both the gsystem name in cad.yaml and the directory that contains the STL files. The three organs are centred on the y-axis (each centroid has x = z = 0) and stacked along y, and the lung mesh — authored trachea-down — carries a 180° rotation about z that turns it right-side up.

See also the CAD Imports Documentation for more information.

Interactive viewer:

Physics List

FTFP_BERT is used by default, selected in the YAML file with phys_list: FTFP_BERT.

phys_list

The physics list can be selected using the option
gemc -phys_list <value>
where <value> can be a combination of the Geant4 physics constructors separated by the + sign. For example
gemc -phys_list="FTFP_BERT + G4NeutronCrossSectionXS"
To see a list of the available Geant4 constructors:
gemc -showPhysics

Generator

The particle kinematics are defined in the YAML file:

gparticle:
  - name: gamma
    p: 380*keV
    delta_p: 120*keV
    multiplicity: 300
    theta: 90*deg
    delta_theta: 90*deg
    randomThetaModel: cosine
    phi: 180*deg
    delta_phi: 180*deg
    vx: 0*mm
    vy: -140*mm
    vz: 0*mm
    delta_vx: 20*mm
    delta_vy: 20*mm
    delta_vz: 20*mm
    randomVertexModel: sphere

This models a clinical Iridium-192 HDR brachytherapy source loaded into the liver:

Energy — Ir-192 emits a line spectrum (dominant lines 0.30–0.61 MeV). It is approximated here by photons at the ~0.38 MeV mean photon energy, smeared with delta_p to span the spectrum.
Position — the vertex is the liver centroid in world coordinates, (0, -140, 0) mm, spread uniformly inside a ~35 mm sphere (randomVertexModel: sphere uses |delta_v| as the radius) to mimic the loaded dwell region. The organs are stacked along the y-axis (x = z = 0) with the heart at the origin, the liver just below it and the lungs above.
Direction — isotropic 4π emission: cosine sampling of θ over 0–180° combined with a uniform φ over 0–360°.

See also the Internal Generator Documentation for more information.

Digitization

Each organ is configured as a flux sensitive detector in stls/cad__default.yaml:

defaults:
  digitization: flux

volumes:
  - name: heart_NIH3D
    identifier: "organ: 1"

The flux digitization is an event-mode detector: it writes one output row per hit, each row carrying the organ identifier and the deposited energy totEdep. This is what lets a single run resolve the three organs separately.

The built-in dosimeter digitization would also compute the dose, but it is a run-mode detector that accumulates every hit sharing its sensitive-detector name into a single summed record. Because all three organs share the one dosimeter name, they would collapse into one number. Using flux keeps the per-organ identity on every hit.

Absorbed dose

plot_dose.py sums the deposited energy per organ and divides by the organ mass to obtain the absorbed dose:

\[D_{\text{organ}} = \frac{\sum_i \mathrm{totEdep}_i}{m_{\text{organ}}}, \qquad m_{\text{organ}} = \rho \, V_{\text{mesh}}\]

where the sum runs over the organ’s hits, \(\rho\) is the assigned material density (gemc cad.yaml -printSystemsMaterials reports 1.06, 1.04 and 1.03 g/cm³ for the blood, lung and soft-tissue materials) and \(V_{\text{mesh}}\) is the CAD mesh volume (native signed volume × the uniform scale³). One gray is one joule per kilogram, \(1\,\mathrm{Gy} = 1\,\mathrm{J/kg}\).

Irradiation time

The simulation fires a fixed number of photons; the corresponding real irradiation time is the time an Ir-192 source of activity \(A\) needs to emit that many photons. With a photon yield \(Y\) (photons per decay) the source emits \(R = A\,Y\) photons per second, so for \(N_\gamma = N_{\text{events}} \times m\) simulated photons (multiplicity \(m\)):

\[R = A \, Y, \qquad t_{\text{rad}} = \frac{N_\gamma}{A \, Y}\]

plot_dose.py defaults to a nominal HDR source, \(A = 10\ \mathrm{Ci} = 3.7\times10^{11}\) Bq, and \(Y = 2.3\) photons per Ir-192 decay (the summed gamma-line intensity); both are adjustable with --activity and --yield. Because the dose and \(t_{\text{rad}}\) both scale linearly with \(N_\gamma\), the absorbed dose per unit treatment time (the dose rate) is \(D_{\text{organ}} / t_{\text{rad}}\), and a full therapeutic dose is reached by scaling up the photon count (equivalently, the dwell time).

See the Dosimeter Documentation for more information.

Usage

Building the detector

Use the Python script cad.py to upload the CAD definitions. The script reads stls/cad__default.yaml and stores the setup in a SQLite file named gemc.db.

./cad.py

python API

Pass -h for additional command line options:

options:
  -h, --help            show this help message and exit
  -f, --factory FACTORY
						ascii, sqlite
  -v, --variation VARIATION
                        Set variation name
  -r, --run RUN         Set run number
  -sql, --dbhost DBHOST
                        SQLite filename or MYSQL host
  -pv, --pyvista        Show geometry using pyvista (needs pyvista)
  -pvb, --pvb, --pyvista-background
                        Use PyVista BackgroundPlotter (needs pyqt6 pyvistaqt)
  -pvw, --width WIDTH   Set plotter width
  -pvh, --height HEIGHT
						Set plotter height
  -pvx, --x X           Set plotter x position
  -pvy, --y Y           Set plotter y position
  -axes, --add_axes_at_zero

If you have pyvista (see also install pyvista), you can use the -pv and -pvb options to display the setup without having to run GEMC

See also the Building Geometry for more information.

Running GEMC

The file cad.yaml can be used to run the setup. Add -gui to run interactively:

gemc cad.yaml -gui

Modify cad.yaml as needed, in particular to add particles, control the number of threads, or change the output.

Running Events

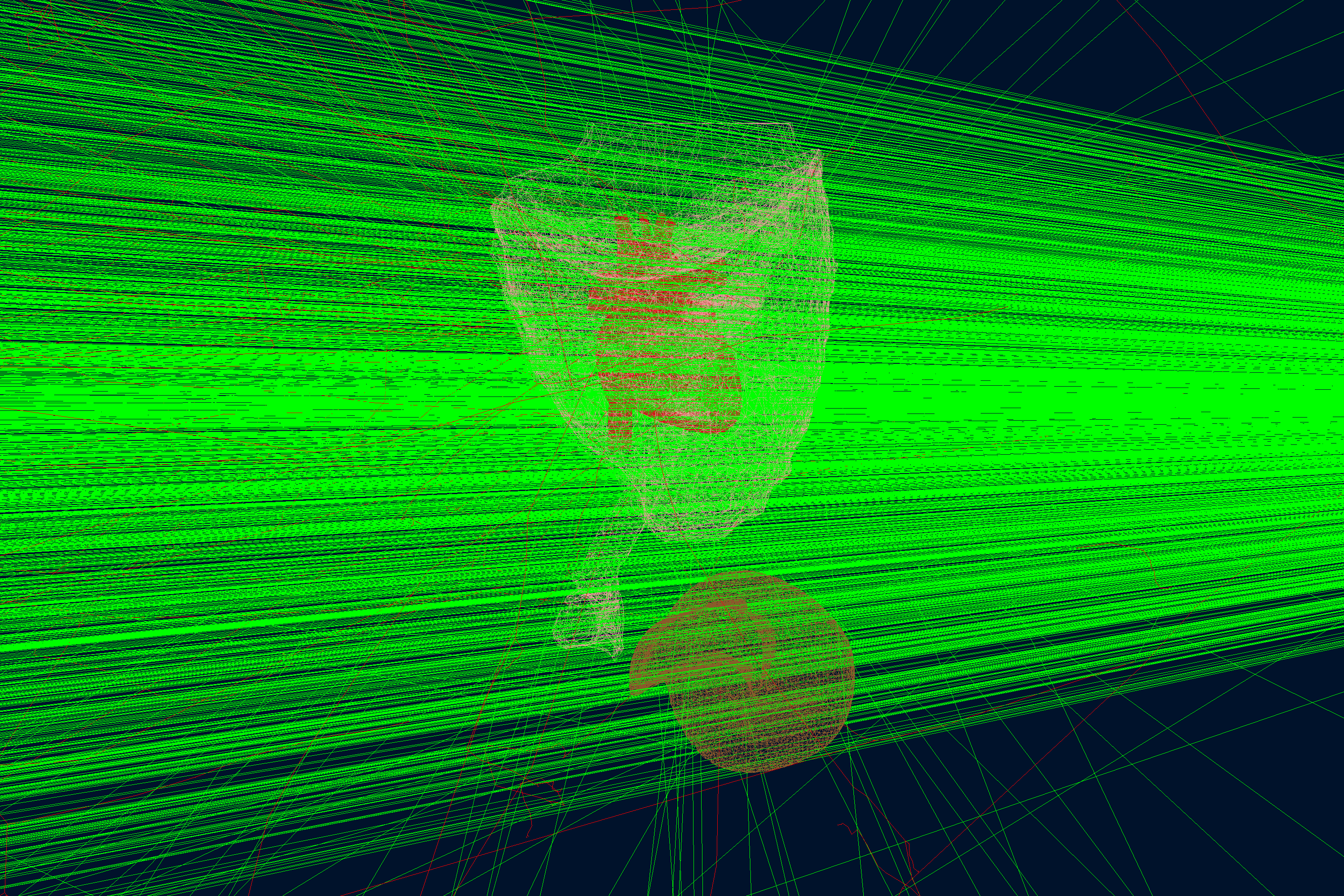

CAD simulation: an Iridium-192 brachytherapy source inside the liver emits photons isotropically, depositing dose in the imported liver, heart, and lung meshes.

Output

The gstreamer option selects the output filename and format:

gstreamer:
  - format: csv
    filename: organs

gstreamer

The gstreamer option selects the output name and format. Run gemc help gstreamer to check its documentation:

-gstreamer=<sequence> ......: define a gstreamer output

• filename: name of output file. Default value: NODFLT
• format: format of output file. Default value: NODFLT
• type: type of output fileDefault value: event


Define output formats and filenames.
It can be used to select <events> or <frame> streams.
The file extension is added automatically based on the format.

Supported formats:

  - root
  - ascii
  - csv
  - json


Output types:

  - event: write events
  - stream: write frame time snapshots

Example that defines two gstreamer outputs:

 -gstreamer="[{format: root, filename: out}, {format: csv, filename: out}]"


The produced files structure depends on the accumulation method used:

  - event-based digitization (like <flux>) will have one file per
    thread, with "_t<thread#>" appended to the filename
  - run-based digitization (like <dosimeter>) will have one output file

See also the Output Documentation for more information.

Plotting the dose in each organ

Run GEMC first so the flux CSV streams are written (more events give the organs-at-risk better statistics):

gemc cad.yaml -n=200

Then plot the per-organ dose with plot_dose.py. It reads organs_t0_digitized.csv, prints the deposited energy, mass and dose per organ, and draws the bar chart:

./plot_dose.py                       # nominal 10 Ci Ir-192 source
./plot_dose.py --activity 5          # a weaker 5 Ci source (rescales the irradiation time)
./plot_dose.py --save organs_dose.png

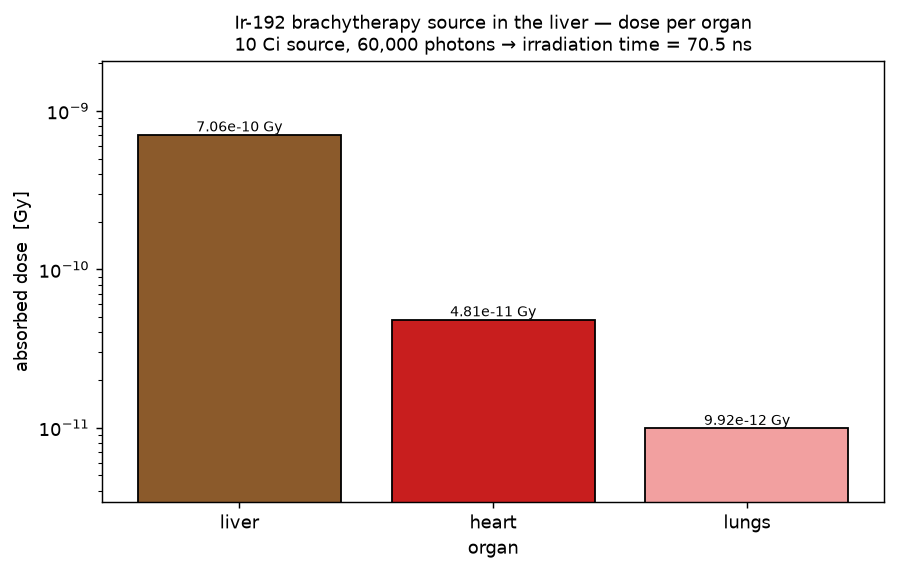

cad dose per organ

The liver, which hosts the source, absorbs by far the largest dose; the heart just above it and the lungs at the top of the stack receive a much smaller scattered dose — the localisation that makes brachytherapy attractive. The title reports the Ir-192 irradiation time that the simulated photon count represents (see Irradiation time above).

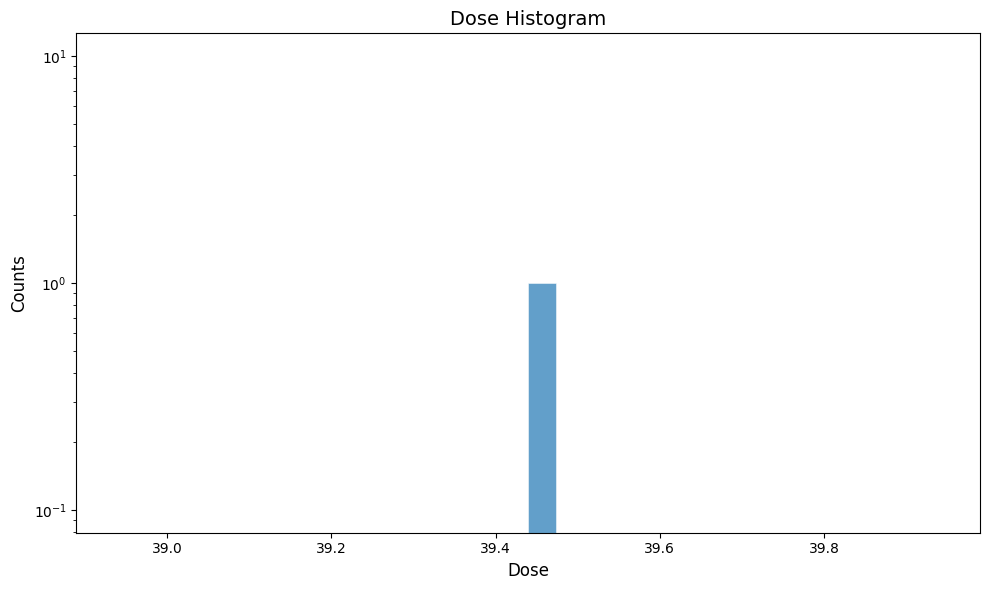

Plotting with the GEMC Analyzer

plot_dose.py above gives the per-organ dose. For a quick look at the raw flux output you can also use the generic gemc-analyzer. Run GEMC first so the CSV streams are written:

gemc cad.yaml -n=200

Histogram the per-hit deposited energy totEdep (the flux stream records totEdep, not dose):

gemc-analyzer organs_t0_digitized.csv totEdep --kind csv

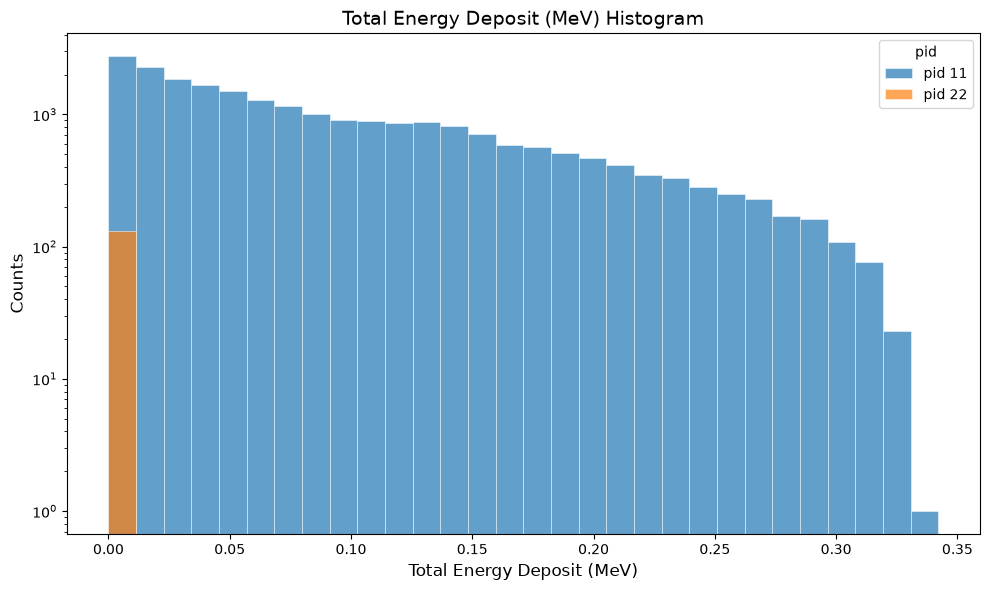

cad total energy deposit

The analyzer colours the histogram by particle id: most of the energy is deposited by secondary electrons (pid 11) set in motion by the Ir-192 photons (pid 22).
